Oil Filter Crusher. Pail Can Crushers

Before and after processing

[ Before and after processing ]




P-100WM Passenger Car and Light Truck Oil Filter Crusher

[ P-100WM Passenger Car and
Light Truck Oil Filter Crusher ]

P-100WM crushes oil filters for passenger cars and light trucks.
It is also capable of crushing diesel car filters of Camin engine and stroke engines.
5 piece of passenger car filters can be pressed at one time.
The machine can be hung on the wall using the key hole on the rear side, which is suitable for automobile repair shops.
Waste oil falls in the drum or tank located beneath the crusher.

Specifications
Crushing force 15ton
Control: Electric/hydraulic
Dimension: 280mm(L)*673mm(W)*890mm(H)
Weight: 180kg
Crushing chamber: 280mm(L)*230mm(W)*203mm(H)

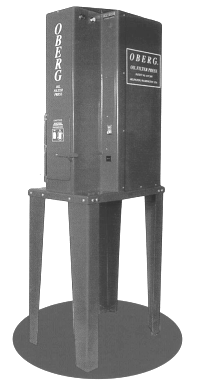

P-200L Heavy Duty Truck Oil Filter Crusher

[ P-200L Heavy Duty Truck Oil Filter Crusher ]

P-200L is the most popular type to crush heavy duty truck oil filters.
It is capable of crushing the largest filter 178mm(W)*406mm(H) and crushes many passenger car filters one time.
Crushed oil filters fall into the drum through the trap door of the rear side of the crushing chamber.
Liquid falls into the different container beneath the machine.
P-200L is operated by electric/hydraulic power unit.
It does not require any air source.
As constant power is always obtained, any auxiliary unit is not required.
After the start button is depressed, all of process is automatically operated.
By the built-in safety interlock, the machine does not start unless the door is completely closed.

Specifications
Cycle time: 25 seconds
Crushing force 15ton
Control: Electric/hydraulic
Dimension: 826mm(L)*597mm(W)*2340mm(H)
Gross Weight: 315kg
Crushing chamber: 280mm(L)*230mm(W)*407mm(H)

Space Saver
The floor space is always the important issue for any shop.
P-200L require only 2 feet square of floor space.
The trap door guides the crushed filters.

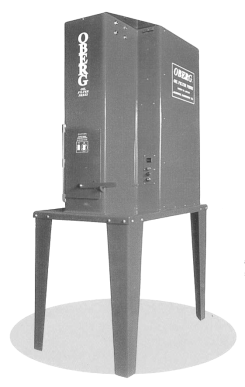

P-300 Industrial Oil Filter and Can Crusher

[ P-300 Industrial Oil Filter and Can Crusher ]

P-300 crushes oil filters up to 508mm in height.
In case of small filters, many pieces can be processed at the same time.
As it has a large crushing chamber, it is also capable of flattening 20 litter pail cane.
With 30ton crushing power, plural truck filters can be process by this model.
Pressed filters fall through the trap door into the drum located at the rear side of the machine.
Two pieces of drums are placed beneath the machine.
One drum is for storing the pressed oil filters, The other drum is for storing the waste oil.
The electric/hydraulic power is supplied by the electric/hydraulic power unit.
The machine produces constant strong power and does not require any pneumatic power.
After the start button is depressed, all of process is automatically conducted.
By the built-in safety interlock system, the machine does not start unless the door is completely closed.

Specifications
Cycle time: 40 seconds
Crushing force 30ton
Control: Electric/hydraulic
Dimension: 1524mm(L)*915mm(W)*2640mm(H)
Gross Weight: 620kg
Crushing chamber: 381mm(L)*381mm(W)*508mm(H)

Space Saver
Two 200 litter drums are placed beneath the machine; One is for storing crushed filters and the one is storing waste oil. (Drums shall be provided by a user.)
The trap door guides the crushed filters into the drum.
The required floor space is 4square feet.


P-350 Locomotive and Industrial Oil Filter Crusher

[ P-350 Locomotive and
Industrial Oil Filter Crusher ]

P-350 crushes max 1016 long railroad train filters.
In case of small filters and 20litter pail cans, it is capable of crushing many pieces at the same time.
Though this model was developed for crushing railroad train filters, it is possible to crush many small filters, paint cans and oil-immersed cloth.
